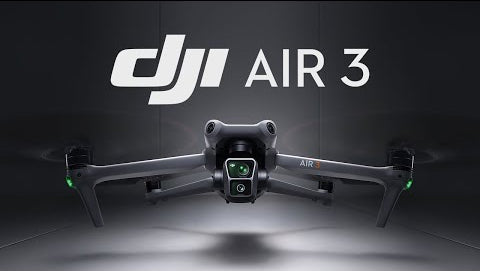

DJI Air 3 (DJI RC-N2 included) [Liability insurance included]
94,400
10,000円以上のご注文で送料無料
【spec】
| Aircraft | |
|---|---|
| takeoff weight | 720g |
| size | Folded (without propeller): 207 x 100.5 x 91.1 mm (length x width x height) Unfolded (without propeller): 258.8 x 326 x 105.8 mm (length x width x height) |
| Maximum climbing speed | 10 m/s |
| Maximum descending speed | 10 m/s |
| Maximum horizontal flight speed (zero point above sea level, no wind) | 21 m/s In the EU region, 19 m/s. |
| Operational altitude limit (above sea level) | 6000m |
| maximum flight time | 46 minutes Specific test conditions: Using DJI Air 3, APAS off, AirSense off, camera parameters set to 1080p/24fps, video mode off, at an altitude of 0 m above sea level in a windless environment, with the remaining battery power Fly at a constant speed of 28.8 km/h from 100% to 0%. Data is for reference only. Always pay attention to the reminders that appear in the app during your flight. |
| Maximum hovering time | 42 minutes Specific test conditions: Using DJI Air 3, APAS off, AirSense off, camera parameters set to 1080p/24fps, video mode off, at an altitude of 0 m above sea level in a windless environment, with the remaining battery power Hovers from 100% to 0%. Data is for reference only. Always pay attention to the reminders that appear in the app during your flight. |
| Maximum flight distance | 32 km |
| Maximum wind pressure resistance | 12 m/s |
| Maximum tilt angle | 35° |
| Operating environment temperature | -10℃～40℃ |
| Global Navigation Satellite System (GNSS) | GPS + Galileo + BeiDou |
| Hovering accuracy range | vertical: ±0.1 m (when using vision positioning) ±0.5 m (when using GNSS positioning) Horizontal: ±0.3 m (when using vision positioning) ±0.5 m (when using high precision system positioning) |
| internal storage | 8GB |
| camera | |
| image sensor | Wide-angle camera: 1/1.3 inch CMOS, effective pixels: 48 MP Medium telephoto camera: 1/1.3 inch CMOS sensor, effective pixels: 48 MP |
| lens | wide angle camera FOV: 82° Focal length: 24 mm (35mm format equivalent) Aperture: f/1.7 Focus: 1 m ~ ∞ medium telephoto camera FOV: 35° Focal length: 70 mm (35mm format equivalent) Aperture: f/2.8 Focus: 3m~∞ |
| ISO sensitivity | Video normal, slow motion: 100-6400 (normal) 100～1600 (D-Log M) 100～1600 (HLG) Night mode: 100-12800 (normal) photograph 100～6400 |
| shutter speed | wide angle camera 12MP photo: 1/16000~2 seconds (pseudo long exposure is 2~8 seconds) 48MP photo: 1/8000~2 seconds medium telephoto camera 12MP photo: 1/16000~2 seconds (pseudo long exposure is 2~8 seconds) 48MP Photo: 1/8000~2 seconds |
| Maximum still image size | Wide-angle camera: 8064×6048 Medium telephoto camera: 8064 × 6048 |
| Still image mode | Wide-angle camera single shot: 12 MP & 48 MP Burst Shot: 12 MP, 3/5/7 shots; 48 MP, 3/5 shots Auto Exposure Bracketing (AEB): 12 MP & 48MP, 3/5 shots (0.7EV steps) Timer: 12 MP, 2/3/5/7/10/15/20/30/60 seconds; 48 MP, 5/7/10/15/20/30/60 seconds Medium telephoto camera single shot: 12 MP & 48 MP Burst Shot: 12 MP, 3/5/7 shots; 48 MP, 3/5 shots Auto Exposure Bracketing (AEB): 12 MP & 48MP, 3/5 shots (0.7EV steps) Timer: 12 MP, 2/3/5/7/10/15/20/30/60 seconds; 48 MP, 5/7/10/15/20/30/60 seconds |
| photo format | JPEG/DNG (RAW) |
| Video resolution | Wide angle camera: H.264/H.265 4K: 3840×2160@24/25/30/48/50/60/100*fps FHD: 1920×1080@24/25/30/48/50/60/100*/200*fps 2.7K portrait shooting: 1512×2688@24/25/30/48/50/60fps FHD portrait shooting: 1080×1920@24/25/30/48/50/60fps Medium telephoto camera: H.264/H.265 4K: 3840×2160@24/25/30/48/50/60/100*fps FHD: 1920×1080@24/25/30/48/50/60/100*/200*fps 2.7K portrait shooting: 1512×2688@24/25/30/48/50/60fps FHD portrait shooting: 1080×1920@24/25/30/48/50/60fps * Recording frame rate. The video will be played in slow motion. 4K/100fps only supports H.265. |
| Video format | MP4 (MPEG-4 AVC/H.264, HEVC/H.265) |
| Maximum video bitrate | H.264/H.265: 150 Mbps |
| Supported file systems | exFAT |
| Color mode & sampling method | Wide-angle camera normal: 8-bit 4:2:0 (H.264/H.265) HLG/D-Log M: 10-bit 4:2:0 (H.265) Medium telephoto camera normal: 8-bit 4:2:0 (H.264/H.265) HLG/D-Log M: 10-bit 4:2:0 (H.265) |
| digital zoom | Wide-angle camera: 1-3x Medium telephoto camera: 3-9x |
| gimbal | |
| stabilization mechanism | 3-axis mechanical gimbal (tilt, roll, pan) |
| Mechanical range of motion | Tilt: -135°~70° Roll: -50°~50° Pan: -27°~27° |
| Operable range | Tilt: -90°~60° Pan: -5°~+5° |
| Maximum control speed (tilt) | 100°/s |
| Angular blur range | ±0.0037° |
| detection | |
| Detection type | Omnidirectional dual vision system, supplemented by an infrared sensor on the bottom of the aircraft |
| forward | Measuring range: 0.5-18 m Detection range: 0.5~200m Effective detection speed: flight speed ≤ 12 m/s FOV: 90° horizontal, 72° vertical |
| backward | Measuring range: 0.5~18 m Effective detection speed: flight speed ≤ 12 m/s FOV: 90° horizontal, 72° vertical |
| Lateral | Measuring range: 0.5~30m Effective detection speed: flight speed ≤ 12 m/s FOV: 90° horizontal, 72° vertical |
| Upward | Measuring range: 0.5~18 m Effective detection speed: flight speed ≤ 6 m/s FOV: 72° forward & backward, 90° left & right |
| downward | Measuring range: 0.3-14 m Effective detection speed: flight speed ≤ 6 m/s FOV: 106° forward & backward, 90° left & right |
| Operating environment | Forward, backward, left, right, upward: The surface pattern has a discernible pattern and under sufficient illumination conditions (> 15 lux) Below: Diffuse reflective surfaces (>20%) on surfaces with discernible patterns (e.g. walls, trees, people) with adequate lighting (>15 lux) |
| 3D infrared sensor | Measurement range: 0.1 to 8 m (reflectance over 10%) FOV: 60° forward & backward, 60° left & right |
| video transmission | |
| Video transmission system | O4 |
| live view quality | Transmitter: 1080p/30fps, 1080p/60fps |
| Operating frequency | 2.4000~2.4835 GHz 5.170~5.250GHz 5.725~5.850GHz 5.170-5.250 GHz is only available in countries and regions where the frequency is permitted by law and regulation. (Only 2.4 GHz band is available in Japan) |
| Transmission power (EIRP) | 2.4 GHz: <33 dBm (FCC) < 20 dBm (CE/SRRC/MIC (Japan)) 5.1 GHz: <23 dBm (CE) 5.8 GHz: <33 dBm (FCC) <30 dBm (SRRC) < 14 dBm (CE) |
| Maximum transmission distance (without obstacles or radio interference) | FCC: 20km CE: 10km SRRC: 10km MIC (Japan): 10 km Measured in an open outdoor environment free of radio interference and obstructions. The data above shows the farthest communication range for a one-way flight with no return trip under each criterion. Always pay attention to RTH reminders displayed in the app during your flight. |
| video transmission | |
| Maximum transmission distance (without obstacles and with radio interference) | Strong interference (urban landscape): about 1.5-4 km Moderate interference (suburban landscape): about 4-10 km Weak interference (suburban/beach): about 10-20 km FCC compliant, measured in an unobstructed and typical interference environment. This data is for reference only and does not guarantee the actual transmission distance. |
| Maximum transmission distance (with obstacles and radio interference) | If there is slight radio interference and is blocked by buildings: approximately 0-0.5 km If there is slight radio interference and is blocked by trees: approximately 0.5-3 km FCC compliant, measured in the presence of obstructions and in a typical mild interference environment. This data is for reference only and does not guarantee the actual transmission distance. |
| maximum download speed | O4: 10 MB/s (when using DJI RC-N2 transmitter) 10 MB/s (when using DJI RC 2 transmitter) Wi-Fi 5: 30MB/s* *Measured in a laboratory environment with little radio interference in a country/region where the use of both 2.4GHz and 5.8GHz frequency bands is permitted. Download speeds may vary depending on actual conditions. |
| minimum delay | Aircraft + transmitter: approximately 120 ms It depends on the actual environment and mobile device used. |
| antenna | Antenna x 6, 2T4R |
| Wifi | |
| protocol | 802.11 a/b/g/n/ac |
| Operating frequency | 2.400~2.4835 GHz 5.725~5.850GHz |
| Transmission power (EIRP) | 2.4 GHz: < 20 dBm (FCC/CE/SRRC/MIC (Japan)) 5.8 GHz: < 20 dBm (FCC/SRRC) < 14 dBm (CE) |
| Bluetooth | |
| protocol | Bluetooth 5.2 |
| Operating frequency | 2.400~2.4835 GHz |
| Transmission power (EIRP) | <10dBm |
| battery | |
| capacity | 4241mAh |
| weight | Approximately 267 g |
| Nominal voltage | 14.76V |
| Maximum charging voltage | 17V |
| kinds | Li-ion 4S |
| Electric energy | 62.6Wh |
| Charging temperature range | 5℃～40℃ |
| charging time |
Approximately 80 minutes (when using DJI 65W portable charger) Approximately 60 minutes (with DJI 100W USB-C power adapter and battery charging hub) |
| charger | |
| input | DJI 65W Portable Charger: 100-240V (AC), 50-60Hz, 2A DJI 100W USB-C Power Adapter: 100-240V (AC), 50-60Hz, 2.5A |
| output | DJI 65W Portable Charger: USB-C: 5V, 5A 9V, 5A 12V, 5A 15V, 4.3A 20V, 3.25A 5~20V, 3.25A USB-A: 5V, 2 ADJI 100W USB-C Power Adapter: Max 100W (total) When both ports are used, the maximum output power of one port is 82W. The charger distributes output power to each port appropriately according to the power load on each port. |
| Rated output | DJI 65W Portable Charger: 65W DJI 100W USB-C Power Adapter: 100W |
| battery charging hub | |
| input | USB-C: 5-20V, up to 5A |
| Output (current collection) | Battery port: 12~17V, 3.5A |
| Output (charging) | Battery port: 12-17V, up to 5A |
| Output (USB) | USB-C: 5V, 3A 9V, 5A 12V, 5A 15V, 5A 20V, 4.1A |
| Charging type | Charge three batteries in sequence. |
| compatibility | DJI Air 3 Intelligent Flight Battery |
| car charger | |
| input | Car input power: 12.7~16V, 6.5A, rated voltage 14V (DC) |
| output | USB-C: 5V, 5A 9V, 5A 12V, 5A 15V, 4.3A 20V, 3.25A 5~20V, 3.25A USB-A: 5V, 2A |
| Rated output | 65W |
| Charging temperature range | 5℃～40℃ |
| storage | |
| Recommended microSD card | SanDisk Extreme PRO 32GB V30 U3 A1 microSDHC Lexar 1066x 64GB V30 U3 A2 microSDXC Lexar 1066x 128GB V30 U3 A2 microSDXC Lexar 1066x 256GB V30 U3 A2 microSDXC Lexar 1066x 512GB V30 U3 A2 microSDXC Kingston Canvas GO! Plus 64GB V30 U3 A2 microSDXC Kingston Canvas GO! Plus 128GB V30 U3 A2 microSDXC Kingston Canvas React Plus 64GB V90 U3 A1 microSDXC Kingston Canvas React Plus 128GB V90 U3 A1 microSDXC Kingston Canvas React Plus 256GB V90 U3 A1 microSDXC Samsung EVO Plus 512GB V30 U3 A2 microSDXC |
| DJI RC-N2 transmitter | |
| model | RC151 |
| Maximum operating time | When not charging the mobile device: 6 hours When charging the mobile device: 3 and a half hours |
| Compatible mobile device maximum size | 180 x 86 x 10 mm (length x width x height) |
| Operating environment temperature | -10℃～40℃ |
| Charging temperature range | 5℃～40℃ |
| charging time | 2 hours and a half |
| Charging type | We recommend using a 5V/2A charger. |
| battery capacity | 5200mAh |
| kinds | 18650 Li-ion |
| size | 104.22 x 149.95 x 45.25 mm (length x width x height) |
| weight | 375g |
| Supported mobile device port types | Lightning, USB-C, Micro-USB When using a mobile device with a Micro-USB port, the separately sold DJI RC-N1 RC cable (standard type Micro USB connector) is required. |
| Video transmission operating frequency | 2.4000~2.4835 GHz 5.170~5.250GHz 5.725 to 5.850 GHz (only 2.4 GHz band can be used in Japan) |
| Video transmission Transmission power (EIRP) | 2.4 GHz: <33 dBm (FCC) < 20 dBm (CE/SRRC/MIC(Japan)) 5.1 GHz: <23 dBm (CE) 5.8GHz: <33 dBm (FCC) < 14 dBm (CE) <30 dBm (SRRC) |
| DJI RC2 transmitter | |
【set content】
| name | quantity | |
|---|---|---|
 |
DJI Air 3 | × 1 |
 |
DJI Air 3 Low Noise Propeller (1 pair) | × 3 |
 |
DJI Air 3 Gimbal Protector | × 1 |
 |
DJI RC-N2 transmitter | × 1 |
 |
DJI RC-N2 RC Cable (USB-C Connector) | × 1 |
 |
DJI RC-N2 RC Cable (Lightning Connector) | × 1 |
 |
USB-C cable | × 1 |
 |
DJI Air 3 Intelligent Flight Battery | × 1 |
*Contents may change without notice.
